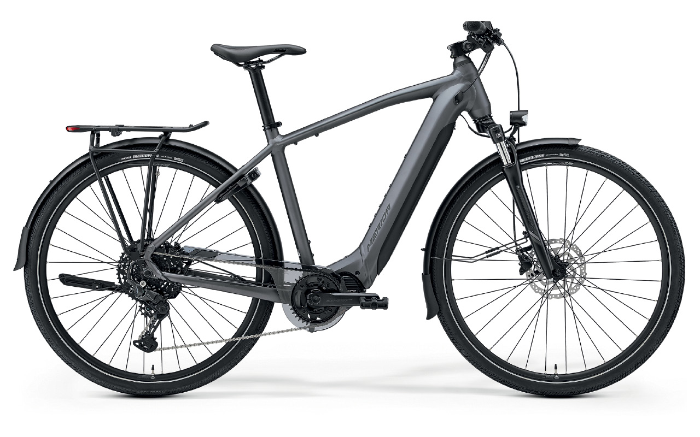

| Frame Name | eSPRESSO LITE IV | eSPRESSO LITE IV | eSPRESSO LITE IV | eSPRESSO LITE IV | eSPRESSO LITE IV |
| Frame Size Name | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 430 | 470 | 510 | 550 | 590 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 580 | 590 | 600 | 620 | 640 |
| CS chain stay length [mm] | 478 | 478 | 478 | 478 | 478 |
| HTA head tube angle [°] | 69 | 69.5 | 69.5 | 70 | 70 |
| STA seat tube angle [°] | 75 | 74.5 | 74.5 | 74 | 74 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 75 | 75 | 75 | 75 | 75 |
| HT head tube [mm] | 133 | 140 | 155 | 175 | 205 |
| FL fork length [mm] | 489 | 489 | 489 | 489 | 489 |
| FO fork offset [mm] | |||||
| R reach [mm] | 409 | 410 | 416 | 424 | 436 |
| S stack [mm] | 640 | 649 | 663 | 684 | 712 |
| WB wheel base [mm] | 1145 | 1144 | 1155 | 1164 | 1187 |
| SH stand over height [mm] | 733 | 768 | 802 | 836 | 873 |
| FRAME | eSPRESSO LITE IV; MAT aluminium; 700x50C (with fender) max. WHS; 142x12 AST; intube |
| SHOCK | |
| FORK | Suntour NEX E25; Coil; 63 STR; 700x52C max WHS |
| BRAKE - FRONT | Shimano MT-200; 2 piston |
| BRAKE - REAR | Shimano MT-200; 2 piston |
| ROTOR - FRONT | Shimano RT10; 180 mm |
| ROTOR - REAR | Shimano RT10; 180 mm |
| CHAIN | Shimano LG500 |
| CHAINWHEEL | Samox NWP203 ; 38 ATC |
| CRANK/SIZE | MERIDA EXPERT TK; 165mm |
| BB SET | |
| DERA - FRONT | |
| DERA - REAR | Shimano CUES U6000; GS |
| FREEWHEEL | Shimano LG300; 11-48 ATC; 10 GER |
| PEDAL | VP VPE-891 |
| GRIP | MERIDA EXPERT TK |
| H-BAR | MERIDA EXPERT; MAT aluminium; 660 WHB; 15 RHB |
| H-B STEM | MERIDA EXPERT CT; MAT aluminium; 31.8 DSH; adjustable |
| STEM/SIZE | 90 mm-XS/S/M, 110 mm-L/XL |
| HEAD SET | MERIDA-8156 |
| HUB - FRONT | Shimano QC300; 100x9 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TC500-HM; 142x12 WHR; 32 SPH; Centerlock |
| AXLE - FRONT | |
| AXLE - REAR | MERIDA COMP TR; including removeable lever, 6mm allen key |
| RIM | MERIDA COMP TK; 20 IWR; MAT aluminium |
| RIM TAPE | |
| SADDLE | MERIDA EXPERT TK II; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB |
| SHIFTER - FRONT | |
| SHIFTER - REAR | Shimano CUES U6000-10 |
| INNER TUBE | 700*32/50 |
| TYRE - FRONT | ETB00449900 M2028eP |
| TYRE - REAR | |
| BOTTLE CAGE | BOTTLE CAGE ADAPTER, BK-003 |
| CARRIER | MERIDA MIK HD Carrier with Spring clip & Spanninga rear light |
| FENDER | Sunnywheel SW-FA311-60E1 (MSB) |
| KICKSTAND | Massload CL-KA98 |
| LIGHT - FRONT | Herrmans H-Black MR4 E |
| LIGHT - REAR | Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier |
| FRAME LOCK | Abus 4650 SL |
| DRIVE UNIT | Shimano EP6; 85Nm |
| DRIVE COVER | SM-DC-EP801 |
| BATTERY | Shimano EN806; 630Wh |
| BATTERY CHARGER | Shimano EC-E6002; 2A charging current |
| BATTERY LOCK | Abus Key |
| DISPLAY | Shimano SC-EN610 |
| Frame Name | eSPRESSO LITE IV | eSPRESSO LITE IV | eSPRESSO LITE IV | eSPRESSO LITE IV | eSPRESSO LITE IV |
| Frame Size Name | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 430 | 470 | 510 | 550 | 590 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 580 | 590 | 600 | 620 | 640 |
| CS chain stay length [mm] | 478 | 478 | 478 | 478 | 478 |
| HTA head tube angle [°] | 69 | 69.5 | 69.5 | 70 | 70 |
| STA seat tube angle [°] | 75 | 74.5 | 74.5 | 74 | 74 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 75 | 75 | 75 | 75 | 75 |
| HT head tube [mm] | 133 | 140 | 155 | 175 | 205 |
| FL fork length [mm] | 489 | 489 | 489 | 489 | 489 |
| FO fork offset [mm] | |||||
| R reach [mm] | 409 | 410 | 416 | 424 | 436 |
| S stack [mm] | 640 | 649 | 663 | 684 | 712 |
| WB wheel base [mm] | 1145 | 1144 | 1155 | 1164 | 1187 |
| SH stand over height [mm] | 733 | 768 | 802 | 836 | 873 |
