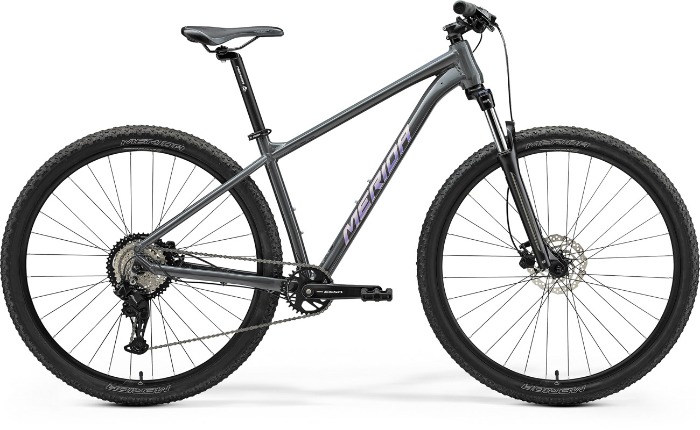

25 BIG NINE 20

$949.00 (Inc GST)
IN STOCK
Code: MERE250002

Select colour
Select Size


Share this page
FRAME BIG.NINE TFS IV; MAT aluminum; 29x2.25" max. WHS; 135x9 AST; BSA BBR
SIZE S-M-L-XL-XXL
FORK SR Suntour XCT30 HLO; Coil; 100 STR; lockout; max. 29x2,25" WHS
BRAKE LEVER
BRAKE - FRONT Tektro HD-M275; hydraulic brake
BRAKE - REAR Tektro HD-M275; hydraulic brake
ROTOR - FRONT Shimano RT10; 160 mm
ROTOR - REAR Shimano RT10; 160 mm
CHAIN KMC Z8.3
CHAINWHEEL Shimano ESSA FC-U2001 32 ATC; MAT Aluminium
CRANK/SIZE 170 mm-S, 175 mm-M up
BB SET Shimano BB-UN101 73-123
DERAILLEUR - FRONT
DERAILLEUR - REAR Shimano ESSA RD-U2000-8; GS
FREEWHEEL Shimano CS-HG400-8; 11-45 ATC; 8 GER
PEDAL VP VPE-891
GRIP MERIDA EC
HANDLEBAR MERIDA CC; MAT aluminium; 690 WHB; 15 RHB
H-B STEM MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD
H-STEM/SIZE 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
HEAD SET MERIDA M2345
HUB - FRONT Shimano TX505; 100x9 WHF; 32 SPH; Centerlock
HUB - REAR Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
RIM MERIDA CC; 17 IWR; MAT aluminium
SADDLE MERIDA Sport comfort
SEAT CLAMP MERIDA COMP QR
SEAT POST MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium
SHIFTER - FRONT
SHIFTER - REAR Shimano ESSA SL-315-8R
INNER TUBE 29*2.2 A.V
TYRE - FRONT MERIDA K1080; 29x2.2"; wire
TYRE - REAR MERIDA K1080; 29x2.2"; wire
Frame Name BIG.NINE TFS IV BIG.NINE TFS IV BIG.NINE TFS IV BIG.NINE TFS IV BIG.NINE TFS IV
Frame Size Name S M L XL XXL
Tyre Sizes 29" 29" 29" 29" 29"
Frame Size Inch
ST  seat tube [mm] 370 430 470 510 560
Ste Seat Tubes Effective Mm
STA  seat tube actual [mm]
TT  top tube [mm] 570 590 610 630 650
CS  chain stay length [mm] 440 440 440 440 440
HTA  head tube angle [°] 70 70 70 70 70
STA  seat tube angle [°] 73 73 73 73 73
Stae Seat Tube Angle Effective Deg
Staa Seat Tube Angle Actual Deg
BD  bottom bracket drop [mm] 60 60 60 60 60
HT  head tube [mm] 100 115 130 145 160
FL  fork length [mm] 506 506 506 506 506
FO  fork offset [mm]
R  reach [mm] 382 398 414 429 445
S  stack [mm] 614 628 642 656 670
WB  wheel base [mm] 1069 1090 1110 1131 1152
SH  stand over height [mm] 679 727 763 800 843
