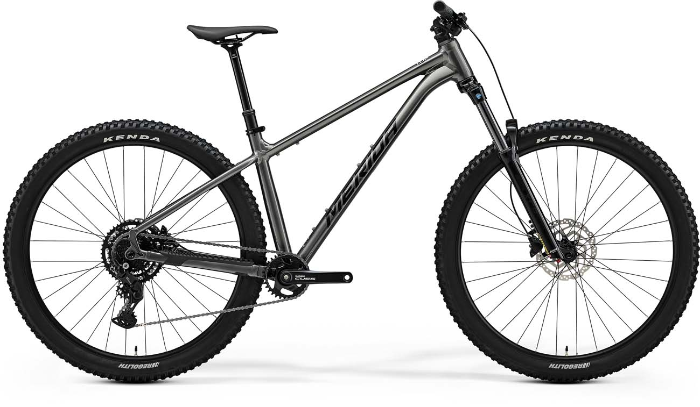

25 BIG TRAIL 300

$1,599.00 (Inc GST)
LOW STOCK
Code: MERE250018

Select colour
Select Size


Share this page
Frame Name BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II
Frame Size Name XSHORT SHORT MID LONG XLONG
Tyre Sizes 29" 29" 29" 29" 29"
Frame Size Inch
ST  seat tube [mm] 385 400 420 445 475
Ste Seat Tubes Effective Mm
STA  seat tube actual [mm]
TT  top tube [mm] 559 581 603 630 657
CS  chain stay length [mm] 435 435 435 435 435
HTA  head tube angle [°] 64 64 64 64 64
STA  seat tube angle [°] 76.5 76.5 76.5 76.5 76.5
Stae Seat Tube Angle Effective Deg
Staa Seat Tube Angle Actual Deg
BD  bottom bracket drop [mm] 70 70 70 70 70
HT  head tube [mm] 90 100 110 120 130
FL  fork length [mm] 551 551 551 551 551
FO  fork offset [mm]
R  reach [mm] 415 435 455 480 505
S  stack [mm] 627 636 645 654 663
WB  wheel base [mm] 1165 1189 1214 1243 1272
SH  stand over height [mm] 715 721 724 726 729
Str Stack To Reach Ratio Pc 1.51 1.46 1.42 1.36 1.31
Dropper Seat Post Max Mm
Seat Post Mounting Depth Max Mm 300 315 335 360 390
FRAME BIG.TRAIL TFS II; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
SHOCK
FORK SR Suntour XCR34; Air; 140 STR; platform
BRAKE - FRONT Shimano MT200; 2 piston
BRAKE - REAR Shimano MT200; 2 piston
ROTOR - FRONT Shimano RT10; 180mm
ROTOR - REAR Shimano RT10; 180mm
CHAIN KMC xGlide
CHAINGUARD
CHAINWHEEL Shimano CUES U4000; 32 ATC
CRANK/SIZE 170 mm for all sizes
BB SET FSA BB-7420ST 127.5mm
DERAILLEUR - FRONT
DERAILLEUR - REAR Shimano CUES U4000;
FREEWHEEL Shimano LG300; 11-46 ATC; 9 GER
PEDAL
GRIP MERIDA COMP EC
H-BAR MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB
H-B STEM MERIDA COMP TR; MAT aluminium; 35 DSH; +7' ASD
H-STEM/SIZE 40 mm
HUB - FRONT Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
HUB - REAR Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
AXLE - REAR MERIDA COMP TR; including removeable lever, 6/4mm allen key
RIM MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
SADDLE MERIDA COMP SL; 25% recycled material; V-mount
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA COMP TR II; 34.9 DSP; 0 SSB; XS: 150 SPT?S: 170 SPT?M/L: 200 SPT?XL: 230 SPT
SHIFTER - FRONT
SHIFTER - REAR Shimano CUES U4000
TYRE - FRONT Kenda Regolith; 29x2.4"; wire
TYRE - REAR Kenda Regolith; 29x2.4"; wire
BOTTLE CAGE
E-SHIFT PARTS-1
OTHER 1
OTHER 2
OTHER 3
OTHER 4
OTHER 5
Frame Name BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II BIG.TRAIL TFS II
Frame Size Name XSHORT SHORT MID LONG XLONG
Tyre Sizes 29" 29" 29" 29" 29"
Frame Size Inch
ST  seat tube [mm] 385 400 420 445 475
Ste Seat Tubes Effective Mm
STA  seat tube actual [mm]
TT  top tube [mm] 559 581 603 630 657
CS  chain stay length [mm] 435 435 435 435 435
HTA  head tube angle [°] 64 64 64 64 64
STA  seat tube angle [°] 76.5 76.5 76.5 76.5 76.5
Stae Seat Tube Angle Effective Deg
Staa Seat Tube Angle Actual Deg
BD  bottom bracket drop [mm] 70 70 70 70 70
HT  head tube [mm] 90 100 110 120 130
FL  fork length [mm] 551 551 551 551 551
FO  fork offset [mm]
R  reach [mm] 415 435 455 480 505
S  stack [mm] 627 636 645 654 663
WB  wheel base [mm] 1165 1189 1214 1243 1272
SH  stand over height [mm] 715 721 724 726 729
Str Stack To Reach Ratio Pc 1.51 1.46 1.42 1.36 1.31
Dropper Seat Post Max Mm
Seat Post Mounting Depth Max Mm 300 315 335 360 390
