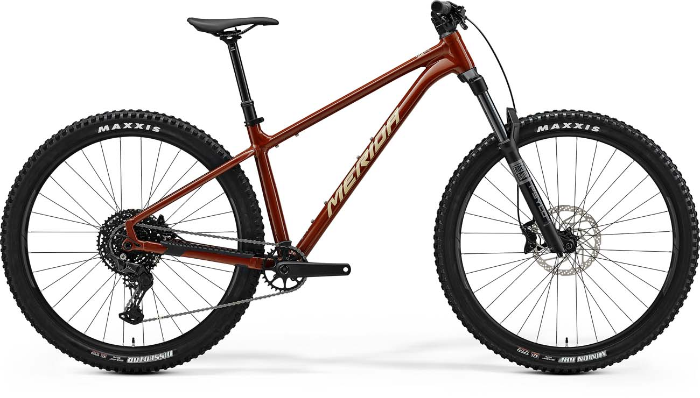

A passion for trail fun, all wrapped up in a no-nonsense package. The BIG.TRAIL 500 offers handling that at inspires confidence and pushes you to go that little bit further in your search for true trail connection. Our top-quality aluminium frame is paired with tough, trail-ready 29er tyres, a 140 mm travel fork and a long travel dropper post to add confidence and capability to any ride.
* Durable double butted aluminium frame
* 140 mm RockShox Psylo fork with 35 mm chassis for incredible stiffness
* Progressive trail bike geometry with long reach, slack head angle and steep seat angle
* 29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern
* Extremely low standover height paired with long travel dropper posts
* Powerful 4-piston Shimano front brake paired with lightweight 2-piston brake
| FRAME | BIG.TRAIL TFS II; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR |
| SHOCK | |
| FORK | Rock Shox Psylo Silver RC; Air; 140 STR; platform |
| BRAKE - FRONT | Shimano MT410; 4 piston |
| BRAKE - REAR | Shimano MT4100; 2 piston |
| ROTOR - FRONT | Shimano RT30; 203mm |
| ROTOR - REAR | Shimano RT30; 180mm |
| CHAIN | KMC xGlide |
| CHAINGUARD | MERIDA EXPERT TR ISCG05 |
| CHAINWHEEL | MERIDA Expert TR II; 32 ATC |
| CRANK/SIZE | 165mm XSHORT and SHORT; 170mm MID, LONG und XLONG |
| BB SET | |
| DERAILLEUR - FRONT | |
| DERAILLEUR - REAR | Shimano CUES U6000; GS |
| FREEWHEEL | Shimano LG300; 11-48 ATC; 10 GER |
| PEDAL | |
| GRIP | MERIDA COMP EC |
| H-BAR | MERIDA EXPERT TR II; MAT aluminium; 780 WHB; 18 RHB |
| H-B STEM | MERIDA EXPERT eTRII; MAT aluminium; 35 DSH; 0 ASD |
| H-STEM/SIZE | 40 mm |
| HUB - FRONT | Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock |
| HUB - REAR | Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock |
| AXLE - REAR | MERIDA COMP TR; including removeable lever, 6/4mm allen key |
| RIM | MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included) |
| SADDLE | MERIDA COMP SL; 25% recycled material; V-mount |
| SEAT CLAMP | MERIDA EXPERT |
| SEAT POST | MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 150 SPT?S: 170 SPT?M/L: 200 SPT?XL: 230 SPT |
| SHIFTER - FRONT | Shimano SL-MT500-L |
| SHIFTER - REAR | Shimano CUES U6000 |
| TYRE - FRONT | Maxxis Minion DHF; 29x2.5"; fold; TR EXO Dual |
| TYRE - REAR | Maxxis Dissector; 29x2.4"; fold; TR EXO Dual |
| BOTTLE CAGE | |
| E-SHIFT PARTS-1 | |
| OTHER 1 | |
| OTHER 2 | |
| OTHER 3 | |
| OTHER 4 | |
| OTHER 5 |
| Frame Name | BIG.TRAIL TFS II | BIG.TRAIL TFS II | BIG.TRAIL TFS II | BIG.TRAIL TFS II | BIG.TRAIL TFS II |
| Frame Size Name | XSHORT | SHORT | MID | LONG | XLONG |
| Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
| Frame Size Inch | |||||
| ST seat tube [mm] | 385 | 400 | 420 | 445 | 475 |
| Ste Seat Tubes Effective Mm | |||||
| STA seat tube actual [mm] | |||||
| TT top tube [mm] | 559 | 581 | 603 | 630 | 657 |
| CS chain stay length [mm] | 435 | 435 | 435 | 435 | 435 |
| HTA head tube angle [°] | 64 | 64 | 64 | 64 | 64 |
| STA seat tube angle [°] | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| Stae Seat Tube Angle Effective Deg | |||||
| Staa Seat Tube Angle Actual Deg | |||||
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 90 | 100 | 110 | 120 | 130 |
| FL fork length [mm] | 551 | 551 | 551 | 551 | 551 |
| FO fork offset [mm] | |||||
| R reach [mm] | 415 | 435 | 455 | 480 | 505 |
| S stack [mm] | 627 | 636 | 645 | 654 | 663 |
| WB wheel base [mm] | 1165 | 1189 | 1214 | 1243 | 1272 |
| SH stand over height [mm] | 715 | 721 | 724 | 726 | 729 |
| Str Stack To Reach Ratio Pc | 1.51 | 1.46 | 1.42 | 1.36 | 1.31 |
| Dropper Seat Post Max Mm | |||||
| Seat Post Mounting Depth Max Mm | 300 | 315 | 335 | 360 | 390 |
