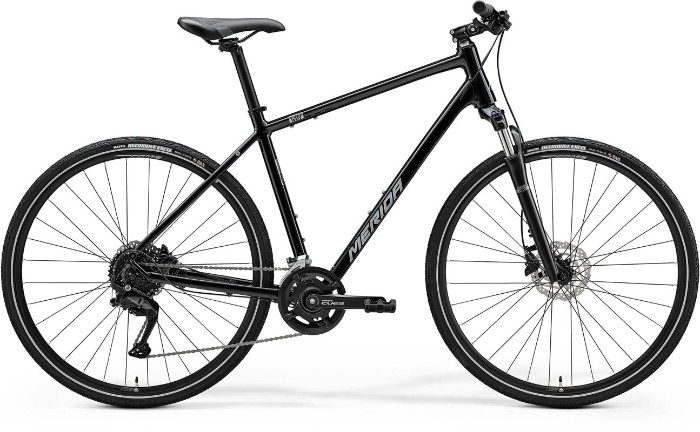

25 CROSSWAY 100

$1,099.00 (Inc GST)
IN STOCK
Code: MERE250022

Select colour
Select Size


Share this page
Frame Name CROSSWAY TFS III CROSSWAY TFS III CROSSWAY TFS III CROSSWAY TFS III CROSSWAY TFS III CROSSWAY TFS III
Frame Size Name XXS XS S M L XL
Tyre Sizes 28" 28" 28" 28" 28" 28"
Frame Size Inch
ST  seat tube [mm] 390 430 470 510 550 590
Ste Seat Tubes Effective Mm
STA  seat tube actual [mm]
TT  top tube [mm] 560 565 580 590 610 630
CS  chain stay length [mm] 460 460 460 460 460 460
HTA  head tube angle [°] 70.5 70.5 71 71 71.5 71.5
STA  seat tube angle [°] 74 74 73.5 73.5 73 73
Stae Seat Tube Angle Effective Deg
Staa Seat Tube Angle Actual Deg
BD  bottom bracket drop [mm] 70 70 70 70 70 70
HT  head tube [mm] 130 130 140 155 175 205
FL  fork length [mm] 468 468 468 468 468 468
FO  fork offset [mm]
R  reach [mm] 382 387 393 399 406 418
S  stack [mm] 620 620 631 645 667 695
WB  wheel base [mm] 1076 1081 1085 1096 1104 1125
SH  stand over height [mm] 678 713 748 782 817 854
FRAME CROSSWAY TFS III; MAT aluminium; 700x50C max. WHS; 135x9 AST; BSA BBR
SHOCK
FORK Suntour NEX HLO; Coil; 63 STR; Lockout; 700x48C max. WHS
BRAKE - FRONT Shimano MT200; 2 piston
BRAKE - REAR Shimano MT200; 2 piston
ROTOR - FRONT Shimano RT10; 160mm
ROTOR - REAR Shimano RT10; 160mm
CHAIN KMC xGlide
CHAINGUARD
CHAINWHEEL Shimano CUES U4000; 40-26 ATC
CRANK/SIZE 170 mm-XXS/XS/S, 175 mm-M/XL
BB SET Shimano BB-UN101; 73mm
DERAILLEUR - FRONT Shimano CUES U4000
DERAILLEUR - REAR Shimano CUES U3020; SGS
FREEWHEEL Shimano LG300; 11-36 ATC; 9 GER
PEDAL VP VPE-891
GRIP MERIDA EXPERT EC
H-BAR MERIDA COMP CC; MAT aluminium; 660 WHB; 25 RHB
H-B STEM MERIDA COMP TK; MAT aluminium; 31.8 DSH; adjustable
H-STEM/SIZE XXS/XS/S/M: 95 mm, L/XL: 110 mm
HUB - FRONT Shimano QC300; 100x9 WHF; 32 SPH; Centerlock
HUB - REAR Shimano QC300-HM; 135x9 WHR; 32 SPH; Centerlock
AXLE - REAR
RIM MERIDA COMP TK; 20 IWR; 17 HRI; MAT aluminium
SADDLE MERIDA Cross Sport
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA EXPERT; 30.9 DSP; 15 SSB; XXS, XS: 300mm; S, M: 350mm; L, XL: 400mm
SHIFTER - FRONT Shimano CUES U4000
SHIFTER - REAR Shimano CUES U4000
TYRE - FRONT Maxxis Overdrive Excel; 700x40C; wire; reflective stripe, Silkshild
TYRE - REAR Maxxis Overdrive Excel; 700x40C; wire; reflective stripe, Silkshild
BOTTLE CAGE
E-SHIFT PARTS-1
OTHER 1
OTHER 2
OTHER 3
OTHER 4
OTHER 5
Frame Name CROSSWAY TFS III CROSSWAY TFS III CROSSWAY TFS III CROSSWAY TFS III CROSSWAY TFS III CROSSWAY TFS III
Frame Size Name XXS XS S M L XL
Tyre Sizes 28" 28" 28" 28" 28" 28"
Frame Size Inch
ST  seat tube [mm] 390 430 470 510 550 590
Ste Seat Tubes Effective Mm
STA  seat tube actual [mm]
TT  top tube [mm] 560 565 580 590 610 630
CS  chain stay length [mm] 460 460 460 460 460 460
HTA  head tube angle [°] 70.5 70.5 71 71 71.5 71.5
STA  seat tube angle [°] 74 74 73.5 73.5 73 73
Stae Seat Tube Angle Effective Deg
Staa Seat Tube Angle Actual Deg
BD  bottom bracket drop [mm] 70 70 70 70 70 70
HT  head tube [mm] 130 130 140 155 175 205
FL  fork length [mm] 468 468 468 468 468 468
FO  fork offset [mm]
R  reach [mm] 382 387 393 399 406 418
S  stack [mm] 620 620 631 645 667 695
WB  wheel base [mm] 1076 1081 1085 1096 1104 1125
SH  stand over height [mm] 678 713 748 782 817 854
