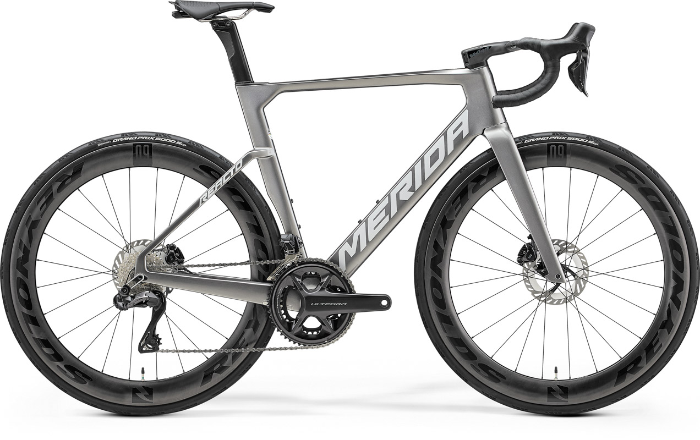

| FRAME | REACTO CF3 IV; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; BB86,5 BBR |
| FORK | REACTO CF3 IV DISC; MAT carbon; 700x30C max. WHS |
| BRAKE LEVER | Shimano Ultegra |
| BRAKE - FRONT | Shimano Ultegra; Hydraulic disc |
| BRAKE - REAR | Shimano Ultegra; Hydraulic disc |
| ROTOR - FRONT | Shimano CL800; 160mm |
| ROTOR - REAR | Shimano CL800; 160mm |
| C-HOUSING | |
| CHAIN | Shimano CN-M6100-12 |
| CHAINWHEEL | Shimano Ultegra; 52-36 ATC |
| CRANK/SIZE | 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL |
| BB SET | SM-BB72-41B, Pressfit 86.5 |
| DERAILLEUR - FRONT | Shimano Ultegra Di2; FD-R8150 |
| DERAILLEUR - REAR | Shimano Ultegra Di2; RD-R8150 |
| FREEWHEEL | Shimano CS-R8101; 11-30 ATC; 12 GER |
| PEDAL | |
| GRIP | MERIDA ROAD Expert |
| HANDLEBAR | VISION METRON 5D ACR EVO; MAT carbon; 380mm (XXS-XS-S); 400mm (M-L-XL) |
| H-B STEM | VISION METRON 5D ACR EVO; MAT carbon |
| H-STEM/SIZE | 90mm-XXS/XS, 100 mm-S, 110 mm-M/L, 120 mm-XL |
| HUB - FRONT | |
| HUB - REAR | |
| AXLE - FRONT | MERIDA EXPERT SL |
| AXLE - REAR | MERIDA EXPERT SL; including removable lever; 6/4mm allen key |
| RIM | Reynolds AR 60 DB, 100x12 WHF; 142x12 WHR; 21 IWR; 60 HRI; Centerlock |
| SADDLE | SCRATCH M5; V-mount adapter; incl. MERIDA minitool |
| SEAT CLAMP | MERIDA REACTO Aero |
| SEAT POST | MERIDA Team CW; Aero shape; 15 SSB; Carbon |
| SHIFTER - FRONT | Shimano Ultegra disc Di2 |
| SHIFTER - REAR | Shimano Ultegra disc Di2 |
| TYRE - FRONT | Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready |
| TYRE - REAR | Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready |
| E-SHIFT PARTS-2 | Battery BT-DN300 |
| E-SHIFT PARTS-3 | Shimano SW-SD300 x 2 |
| OTHER 5 | MERIDA Multitool with saddlebox |
| Frame Name | REACTO CF3 IV | REACTO CF3 IV | REACTO CF3 IV | REACTO CF3 IV | REACTO CF3 IV | REACTO CF3 IV | REACTO CF3 IV |
| Frame Size Name | 3XS | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
| Frame Size Inch | |||||||
| ST seat tube [mm] | 440 | 470 | 500 | 520 | 540 | 560 | 590 |
| Ste Seat Tubes Effective Mm | |||||||
| STA seat tube actual [mm] | |||||||
| TT top tube [mm] | 505 | 520 | 536 | 545 | 560 | 575 | 590 |
| CS chain stay length [mm] | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| HTA head tube angle [°] | 70.5 | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
| STA seat tube angle [°] | 75.5 | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
| Stae Seat Tube Angle Effective Deg | |||||||
| Staa Seat Tube Angle Actual Deg | |||||||
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
| HT head tube [mm] | 100 | 105 | 112 | 128 | 140 | 155 | 176 |
| FL fork length [mm] | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
| FO fork offset [mm] | |||||||
| R reach [mm] | 373 | 377 | 384 | 390 | 395 | 400 | 409 |
| S stack [mm] | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
| WB wheel base [mm] | 979 | 985 | 983 | 990 | 990 | 999 | 1010 |
| SH stand over height [mm] | 727 | 746 | 771 | 792 | 810 | 826 | 853 |
